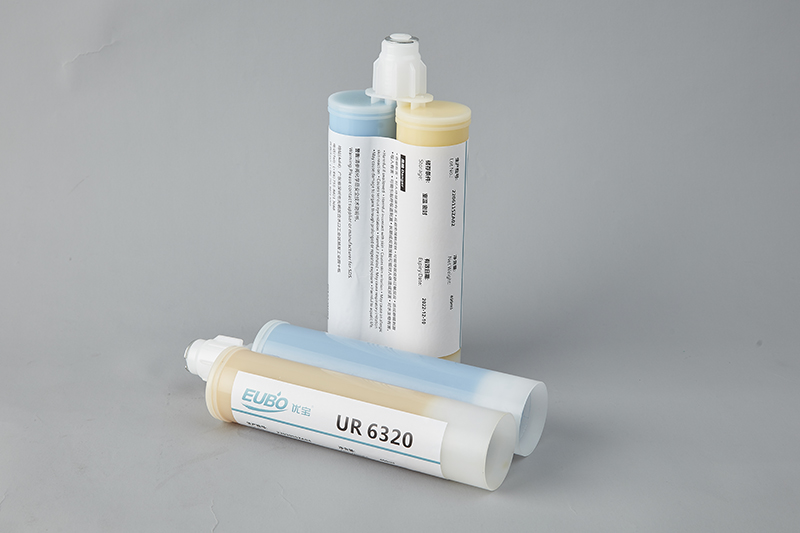

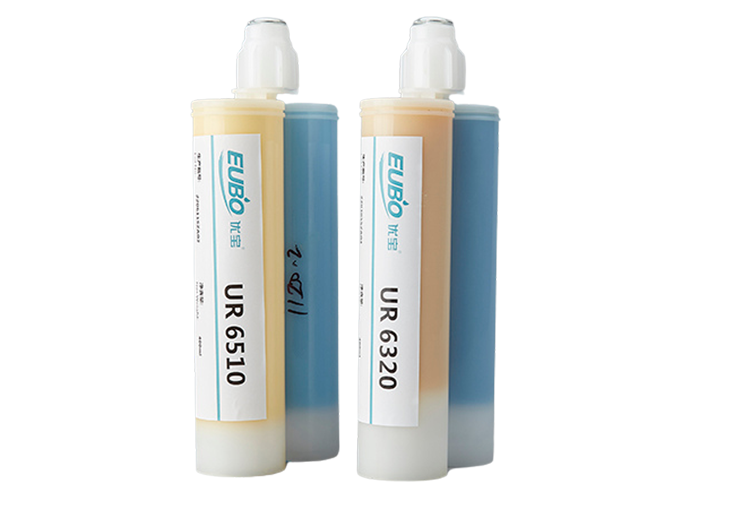

Thermally Conductive Adhesive UR6320

Thermally conductive adhesive is a solvent-free, two-component thermally conductive bonding material that can cure at room temperature. After curing, the product forms an elastomer with certain thermal conductivity, capable of high-strength bonding on various substrates such as PET, aluminum-plastic film, aluminum, and ceramics. It exhibits excellent mechanical strength, as well as aging resistance, vibration resistance, and impact resistance.

Instructions for Use

1. The bonding surfaces should be cleaned of oil, dust, or other contaminants.

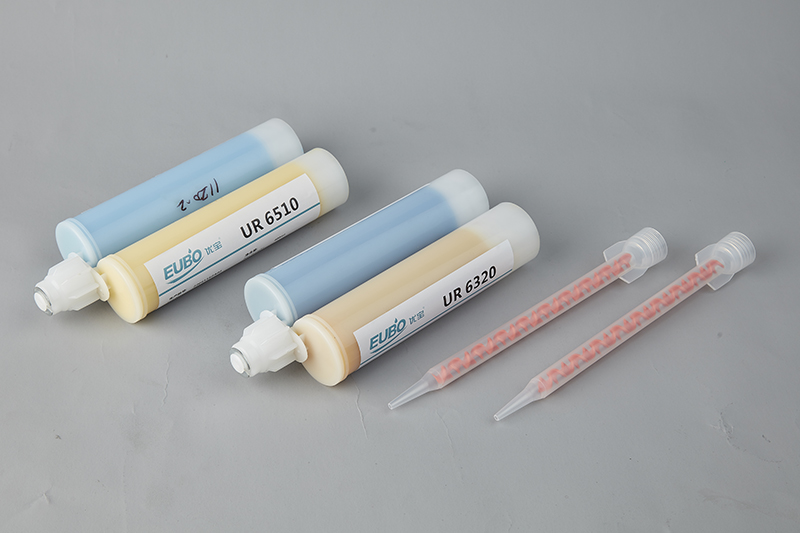

2. Apply the adhesive to the bonding area using the provided mixing nozzle. If possible, apply appropriate pressure and use fixtures to hold the parts in place.

3. Place the bonded components in a room temperature environment and let them sit for 5 hours (depending on the actual temperature) to achieve 70–80% of the final strength.

4. The curing rate depends on the ambient room temperature.

5. After use, immediately close the cap to prevent contamination or curing in the container.

6. When the ambient temperature is below 20°C, allow the adhesive to equilibrate for at least 2 hours before use.

Precautions

• Keep out of reach of children.

• Do not pour unused adhesive back into the original container to avoid contamination.

• This product contains organic amines, which may irritate skin, mucous membranes, and eyes.

Note

The data provided are obtained under laboratory conditions. Due to differences in usage conditions, users should analyze and test the product according to their specific circumstances. EUBO does not guarantee the performance of its products under particular conditions and is not liable for any direct, indirect, or accidental losses.

For any issues during use, users can contact EUBO Technical Services, and we will provide all necessary assistance.
